EVH 5150 Iconic Series EL34 40W 1×12 Combo Guitar Combo Amplifier

This combo amp is available with two channels, each with its own voicing, providing a high degree of versatility.

Amplifier Type

Tube

Output

40 Watts

Preamp Tubes

2 x ECC83S

Power Tubes

2 X EL34

Rectifier

Solid State

Inputs

One – 1/4”

Channels

Two – Clean/Overdrive and Lead/Burn

Control Panel

Channel 1: Gain w/ Overdrive Switch; Channel 2: Gain w/ Burn Switch

Effects

Reverb

Effects Loop

1/4” (Send/Return)

Line Out

Two – (One XLR and One 1/4”)
Speaker Jack:Two – 1/4” Parallel

Speaker

One – 12” EVH Celestion Custom

Speaker Power Rating

40 Watts

Cabinet Material

MDF w/ Plywood Baffle

Covering

Black Textured Vinyl

Grille Cloth

Black

Handle

Molded Plastic Strap with Black Powder Coated Caps

Black Chicken-Head Style Pointer

Black Chicken-Head Style Pointer

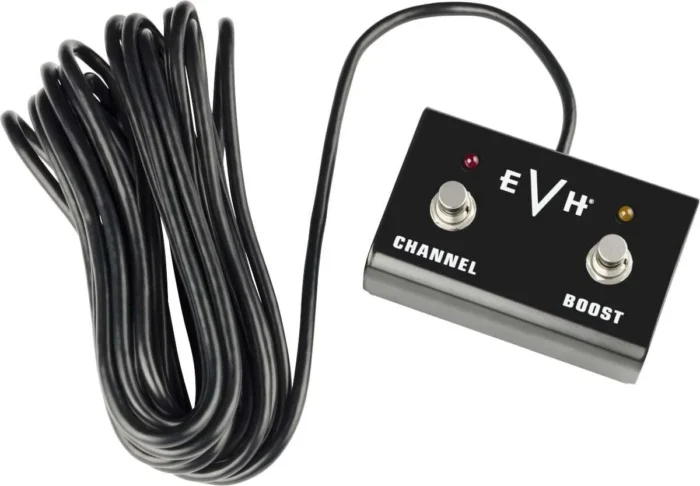

Footswitch

2-Button Footswitch Included

Footswitch Connection Type

1/4”

Power Cable

IEC

Dimensions

21" (53.34 cm) H x 22.5" (57.15 cm) W x 11.25" (28.57 cm) D

Weight

53 lbs. (24 kg)

6 People watching this product now!
Category:
Description

Description

Designed by amp engineer James Brown, the 5150 Iconic Series 40W 1×12 Combo features two EL34 power tubes and a complex multi-stage hybrid preamp section of ECC83 vacuum tubes to deliver the powerful tones that the modern guitarist needs. The cabinet is made of MDF with a tight low-frequency response thanks to an internal plywood baffle and features custom EVH 12-inch Celestion loudspeakers that are specially voiced to match the preamp circuitry.

This combo amp is available with two channels, each with its own voicing, providing a high degree of versatility. The Green channel has an overdrive button that supports clean tones to mid-gain, while the Red channel has a burn button that is ideal for high-gain lead sounds.

Each channel has a gain control and a volume control that allows you to match the volume level when switching between clean and high gain channels. The Noise Gate on Channel 2 suppresses hiss with a fast response while creating a crisp sound with high clarity without unnaturally clogging up the staccato riff. The Boost control allows you to add a +10dB level boost with a footswitch. The control panel also includes a shared EQ (Low, Mid, High), a global resonance knob, and a presence knob for comprehensive low/high-end adjustments, while global reverb control allows for optimal initial reflection and decay time adjustments.
